Repair Procedures: Inspection

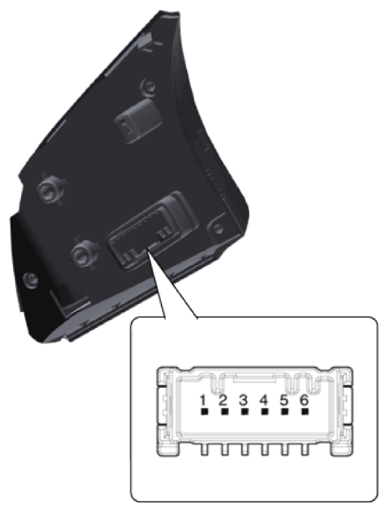

  1. Loosen the cruise control switch connector.
    G14702734Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for resistance between terminals in each switch position.
    Switch Connector terminal Resistance (± 5%)
    Cancel 2 - 6 330Ω
    SET - 610Ω
    RES + 910Ω
    Cruise ON/OFF 1.38 KΩ
    Cruise Mode 2.13 KΩ
