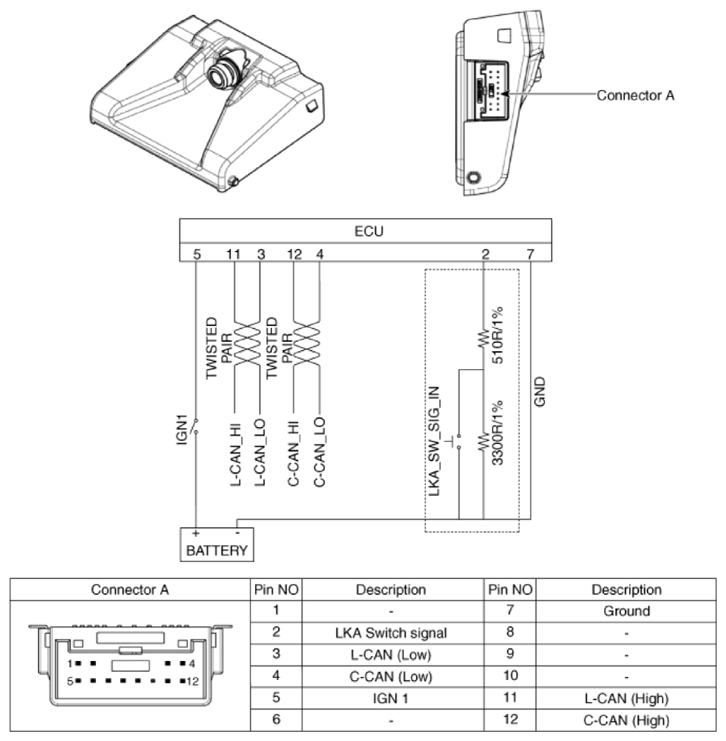

Home >> Hyundai >> 2020 >> Venue SEL >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Front View Camera System >> Front View Camera Unit >> Schematic Diagrams >> Circuit Diagram
