Home >> Hyundai >> 2020 >> Venue SE, Automatic CVT Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (6 Of 6) >> DTC P2237-00: O2 Sensor Pumping Current Circuit/Open (Bank 1 Sensor 1) >> Troubleshooting >> Diagnostic Flowchart

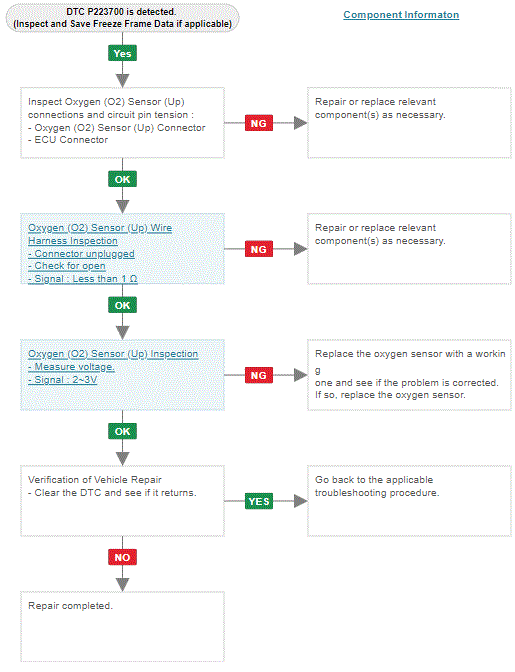

Diagnostic Flowchart

G14703414Courtesy of HYUNDAI MOTOR AMERICA
