Home >> Hyundai >> 2020 >> Venue SE, Automatic CVT Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (5 Of 6) >> DTC P061A-00: Internal Control Module Torque Performance >> Troubleshooting >> Diagnostic Flowchart

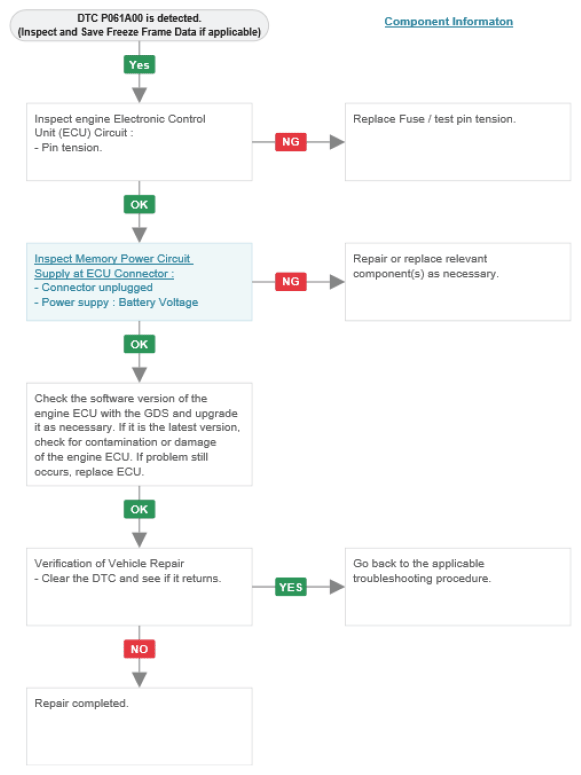

Diagnostic Flowchart

G14703366Courtesy of HYUNDAI MOTOR AMERICA
