Components & Components Location: Components

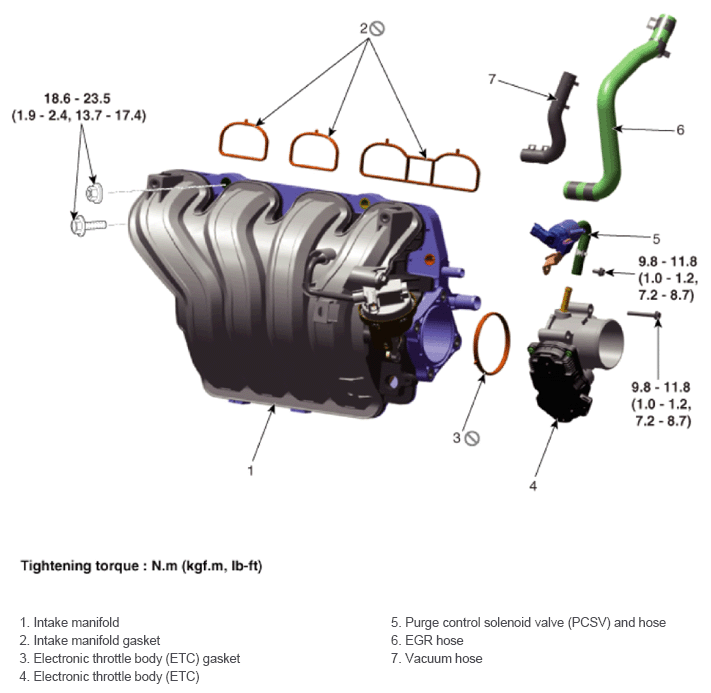

Fig 1: Intake Manifold Components Location With Torque Specification

G14694139

Courtesy of HYUNDAI MOTOR AMERICA
