Repair Procedures: Inspection
- Measure the output voltage between the terminal of the wheel speed sensor and the body ground.CAUTION:

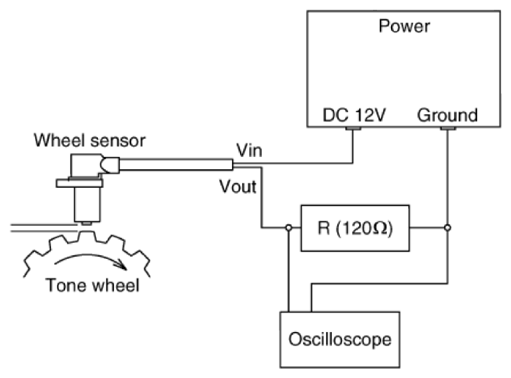

- In order to protect the wheel speed sensor, when measuring output voltage, a 120Ω resister must be used as shown.
- Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.
V_Low: 0.7V - 1.0V
V_High: 1.4V - 2.0V
Frequency range: 1 - 2, 500 Hz
