Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX HOUSING ")

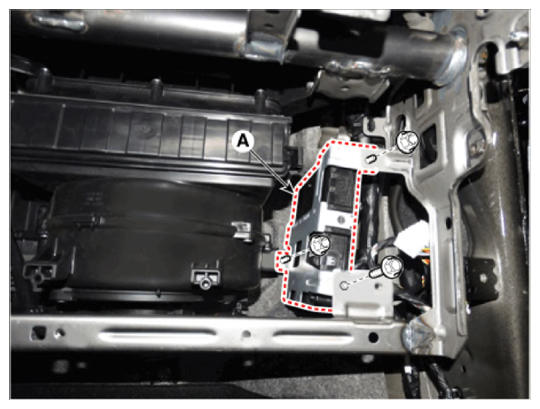

  3. Remove the smart key unit (A) after loosening the nuts.
    G14696035Courtesy of HYUNDAI MOTOR AMERICA

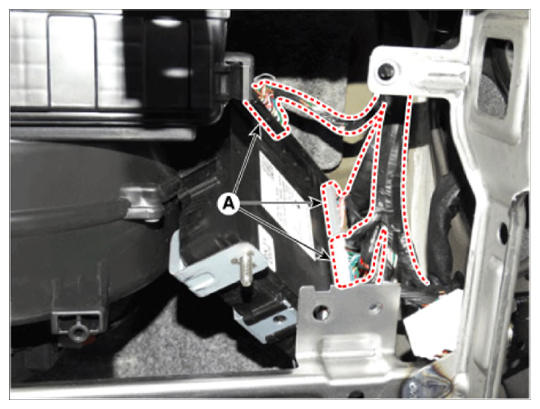

  4. Remove the smart key unit the connectors (A).
G14696036Courtesy of HYUNDAI MOTOR AMERICA
