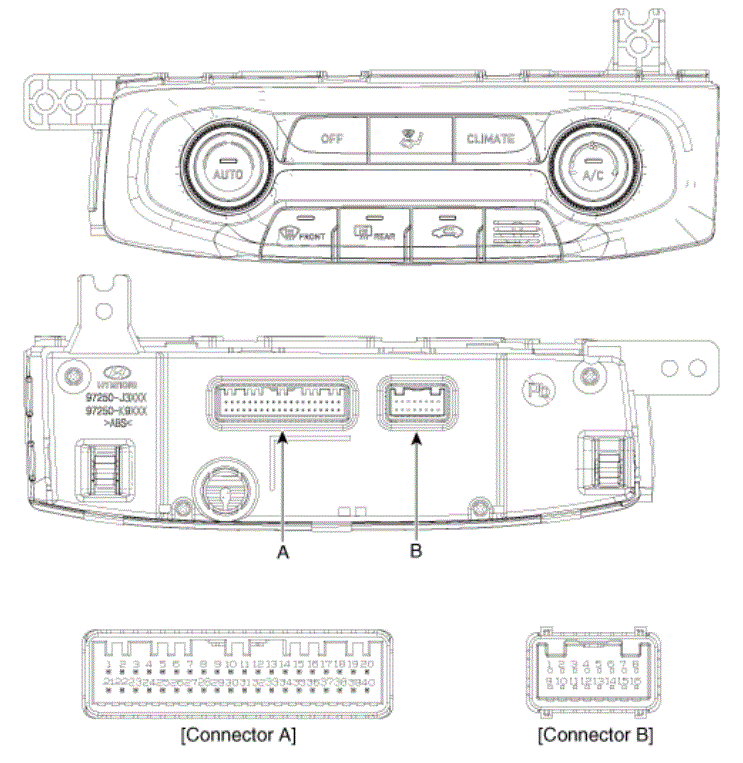

Components And Components Location: Components
Connector [A]
CONNECTOR DESCRIPTION (A)
| Connector | Pin NO | Function |
|---|---|---|
| A | 1 | Battery (+) |
| 2 | - | |
| 3 | ILL+ (TAIL) | |
| 4 | Sensor REF (+5V) | |
| 5 | Mode actuator feedback | |
| 6 | Temperature actuator feedback | |
| 7 | Intake actuator feedback | |
| 8 | EVAP Sensor (+) | |
| 9 | AMB Sensor (+) | |
| 10 | Mode actuator (Vent) | |
| 11 | Mode actuator (Defrost) | |
| 12 | Temperature actuator (Cool) | |
| 13 | Temperature actuator (Warm) | |
| 14 | Intake actuator (Fresh Air) | |
| 15 | Intake actuator (Recirculated Air) | |
| 16 | HTD (Rear defog indicator) | |
| 17 | Rear defog switch | |
| 18 | Clean signal | |
| 19 | Ionizer diagnosis | |
| 20 | ILL- (RHEO) | |
| 21 | IGN2 | |
| 22 | IGN1 | |
| 23 | Blower motor (+) | |
| 24 | Blower motor (+) | |
| 25 | - | |
| 26 | - | |
| 27 | - | |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | Detent out (-) | |
| 32 | - | |
| 33 | C_CAN High | |
| 34 | C_CAN Low | |
| 35 | Power mosfet (Drain feed back) | |
| 36 | Power mosfet (Gate) | |
| 37 | ECV + | |
| 38 | ECV- (Ground) | |
| 39 | Sensor ground | |
| 40 | Ground |
Connector [B]
CONNECTOR DESCRIPTION (B)
| Connector | Pin NO | Function |
|---|---|---|
| B | 1 | - |
| 2 | - | |
| 3 | - | |
| 4 | Auto defogging (Feedback) | |
| 5 | Auto defogging (Open) | |
| 6 | Auto defogging (Off) | |
| 7 | ||
| 8 | ||
| 9 | - | |
| 10 | - | |
| 11 | - | |
| 12 | Auto defogging (TEMP) | |
| 13 | Auto defogging (SCK) | |
| 14 | Auto defogging (Data) | |
| 15 | - | |
| 16 | Ground |
