Repair Procedures: Disassembly

NOTE:
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.
  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the housing circlip (B) from the driveshaft spline (A).
    G13052951Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove both boot bands from the TJ housing.
    G13052952Courtesy of HYUNDAI MOTOR AMERICA
    G13052953Courtesy of HYUNDAI MOTOR AMERICA

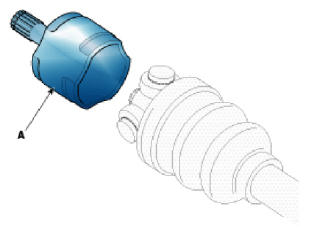

  4. Remove the TJ housing (A).
    G13052954Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Make alignment marks (D) on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.
    G13052955Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the retainer ring (A) from the shaft.
    G13052956Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).
    G13052957Courtesy of HYUNDAI MOTOR AMERICA
  7. Clean the spider assembly.
  8. Remove the TJ boot (A).
    NOTE:
    • For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
    G13052958Courtesy of HYUNDAI MOTOR AMERICA
