Components (1)

Gamma 1.6 T-GDI

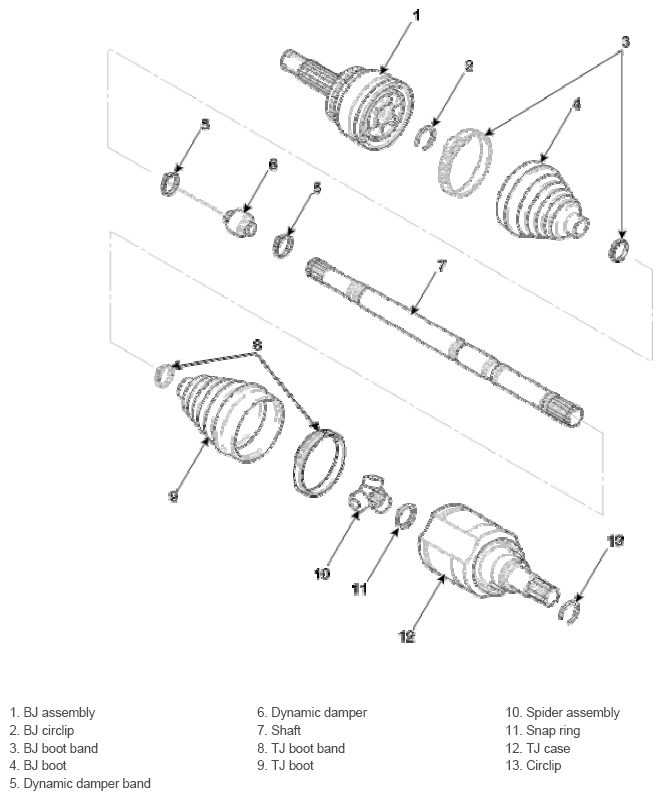

G13052948

Courtesy of HYUNDAI MOTOR AMERICA

Components (2)

Nu 2.0 MPI

LH

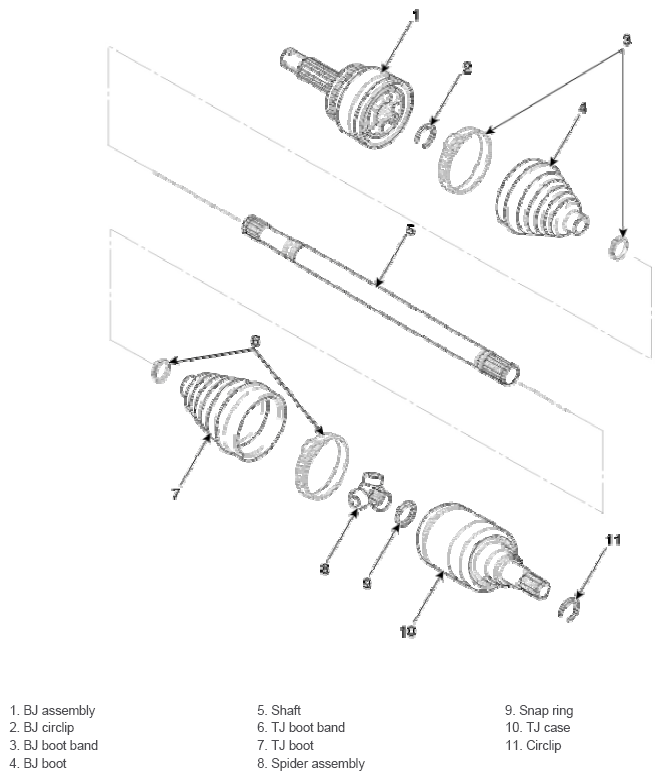

G13052949

Courtesy of HYUNDAI MOTOR AMERICA

RH

G13052950

Courtesy of HYUNDAI MOTOR AMERICA
