Repair Procedures: Removal

  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  3. Remove the Dynamic damper.

    (Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")

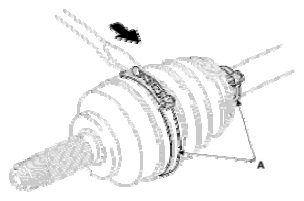

  4. Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).
    G13052971Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the BJ boot.
