Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

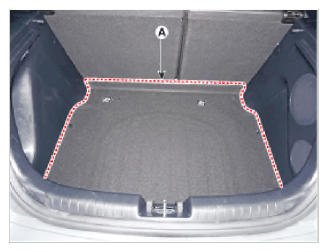

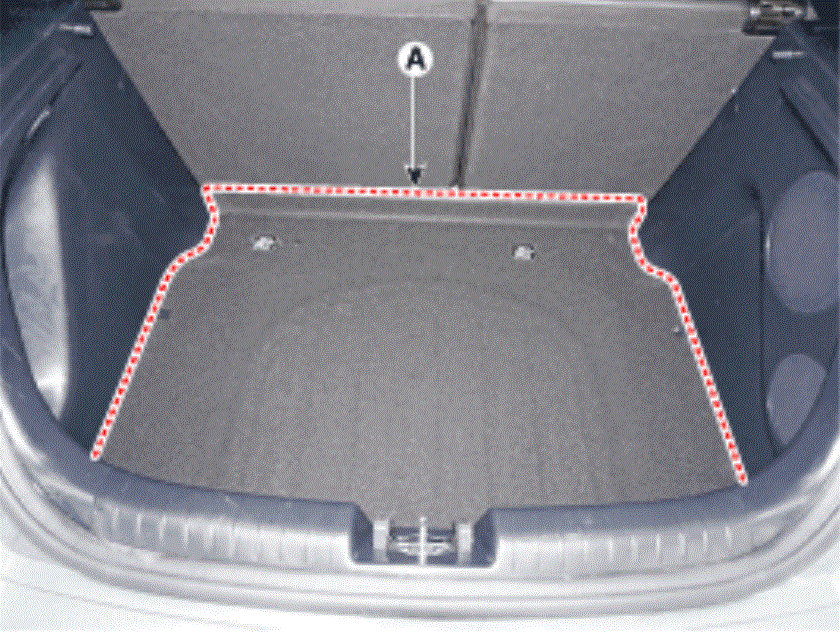

Remove the luggage covering board (A).

Courtesy of HYUNDAI MOTOR AMERICA

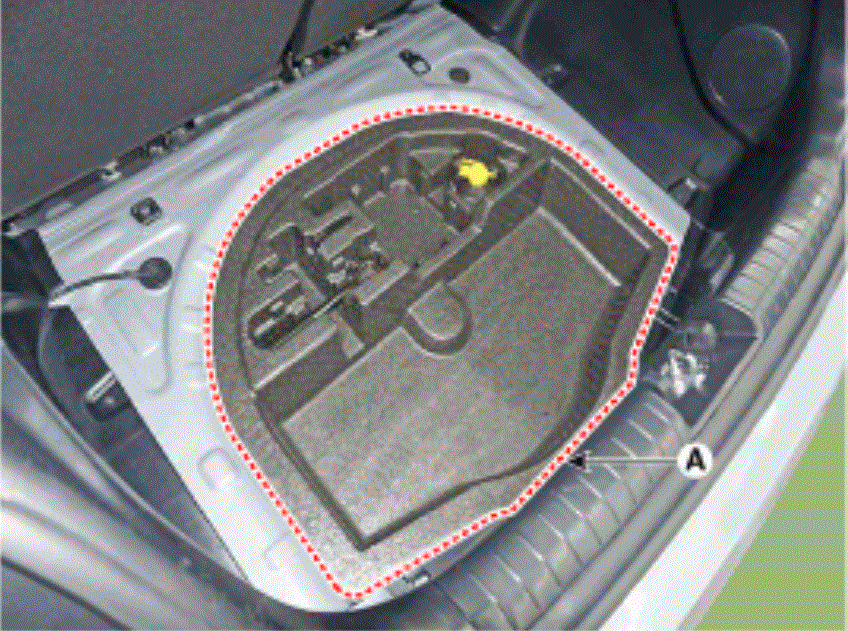

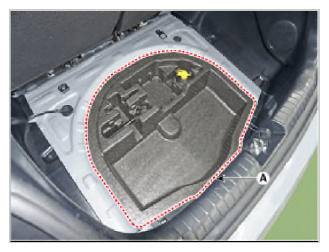

Remove the luggage floor center tray assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

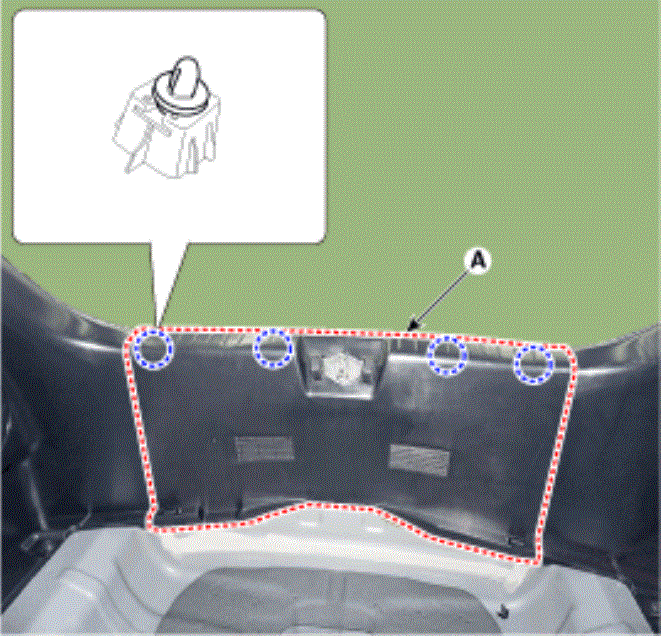

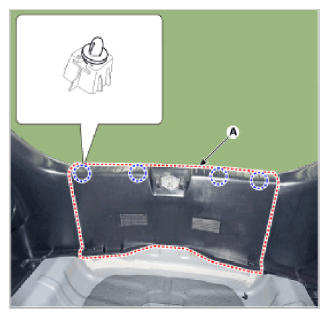

Using a screwdriver or remover, remove the rear transverse trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
