Repair Procedures: Replacement

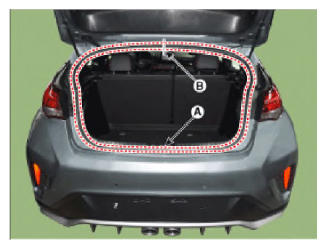

  1. Remove the liftgate weatherstrip (A).
    NOTE:
    • Do not apply sealant to the body.
    G13053652Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse of replacement procedure.

    Information

    • When installing the liftgate weatherstrip, check the center-marking line (B).
