Liftgate Side Trim

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the liftgate lower trim.
Remove the liftgate upper trim.
After loosening the mounting screw, remove the liftgate side trim (A).

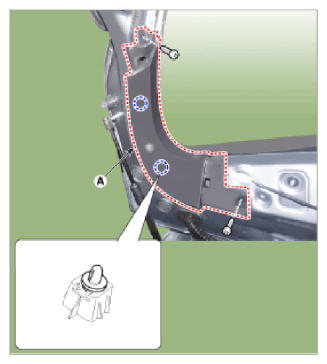

LH

Courtesy of HYUNDAI MOTOR AMERICA

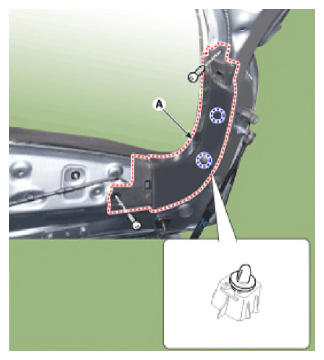

RH

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse of replacement procedure.
Information
- Replace any damaged clips (or pin-type retainers).
