Repair Procedures: Installation
- Install in the reverse order of removal.

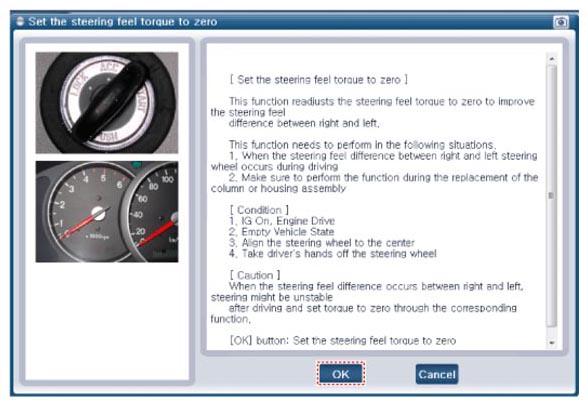

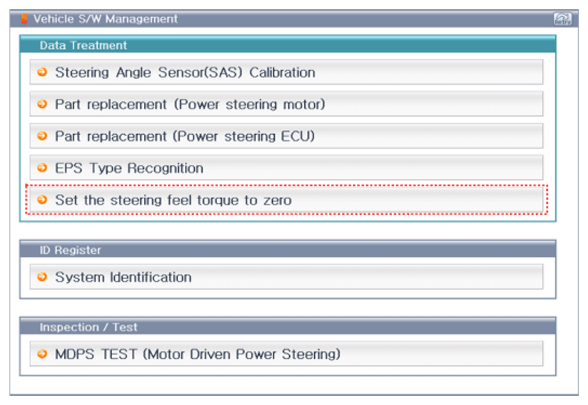

- Perform "Set The Steering Feel Torque To Zero" using the GDS.
- Conduct the "ASP Calibration" by GDS.
(Refer to MDPS Assembly - "DIAGNOSIS WITH GDS ")
- Conduct the "EPS Type Recognition" by GDS.
(Refer to MDPS Assembly - "DIAGNOSIS WITH GDS ")
- Check the DTC.
- Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine.
