Repair Procedures: Installation
- Remove the ignition key from the vehicle.
- Disconnect the battery negative cable from battery and wait for at least three minutes before beginning work.

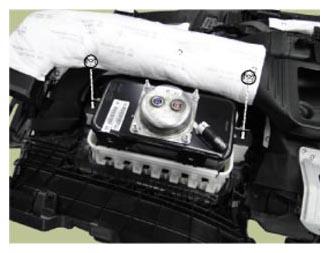

- Place the passenger airbag on the crash pad and tighten the passenger airbag mounting nuts.
Tightening torque:
4.0 ~ 6.0 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.4 lb-ft)
- Install the crash pad.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

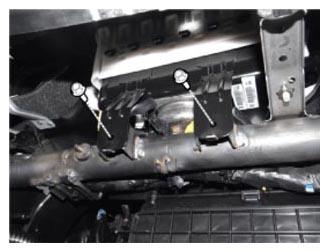

- Tighten the passenger airbag crash pad mounting bolts.
Tightening torque:
9.0 ~ 11.0 N.m (0.9 ~ 1.2 kgf.m, 4.28 ~ 8.1 lb-ft)

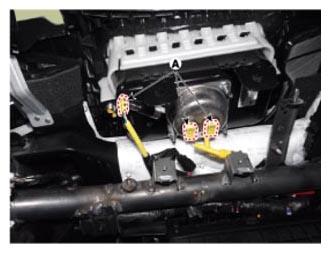

- Connect the passenger airbag harness connector to the SRS main harness connector (A).
- Reinstall the glove box.
(Refer to Body - "CRASH PAD CENTER PANEL ")
- Reconnect the battery negative cable.
- After installing the passenger airbag (PAB), confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
