Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console front tray.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

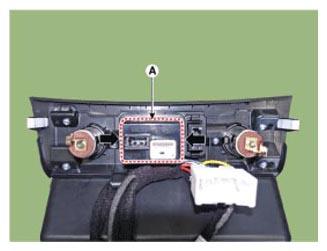

  3. Remove the Multimedia Jack (A) after disengaging the retaining clips.
    G13030149Courtesy of HYUNDAI MOTOR AMERICA
