Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  3. Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.
    G13016964Courtesy of HYUNDAI MOTOR AMERICA

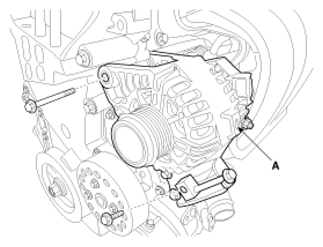

  4. Pull out the through bolt and then remove the alternator (A).
    G13016965Courtesy of HYUNDAI MOTOR AMERICA
