Components And Components Location: Components

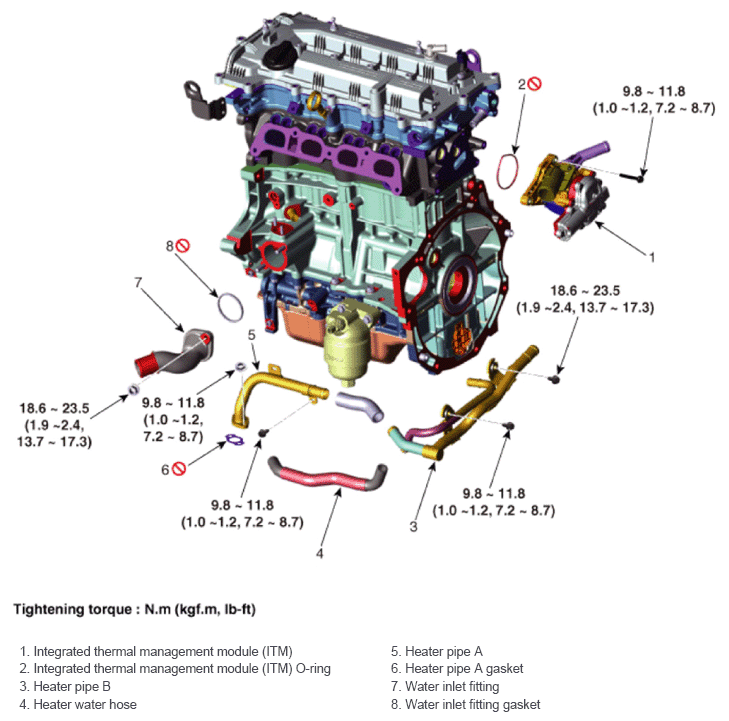

Fig 1: Thermal Management Module Motor Components Location With Torque Specification

G14525014

Courtesy of HYUNDAI MOTOR AMERICA
