Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to REAR SEAT ASSEMBLY (EXCEPT HEV) Body - "Rear Seat")

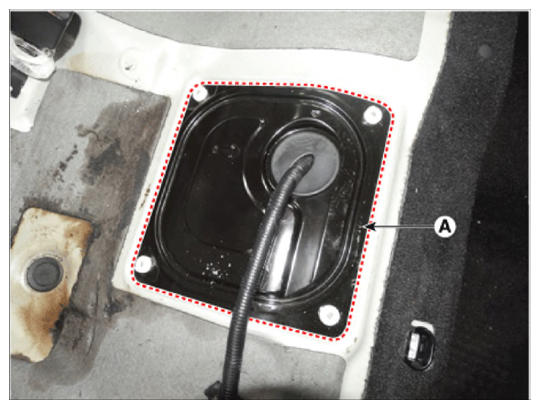

  3. Remove the fuel pump service cover (A).
    G14528300Courtesy of HYUNDAI MOTOR AMERICA

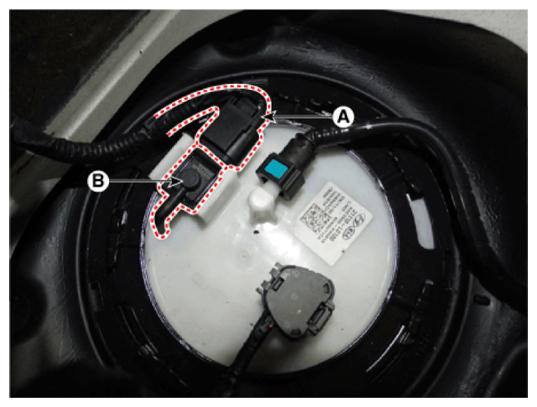

  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
G14528301Courtesy of HYUNDAI MOTOR AMERICA
