Repair Procedures: Removal
WARNING:
- DON'T remove the camshaft position sensor during engine running or right after engine stops, or a scald by the flowed out engine oil may occur.
[Bank 1/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

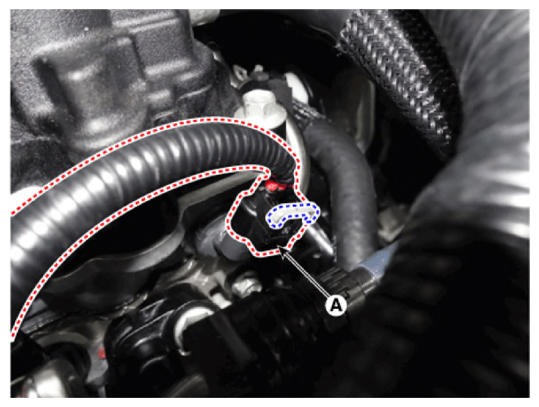

- Disconnect the camshaft position sensor connector (A).

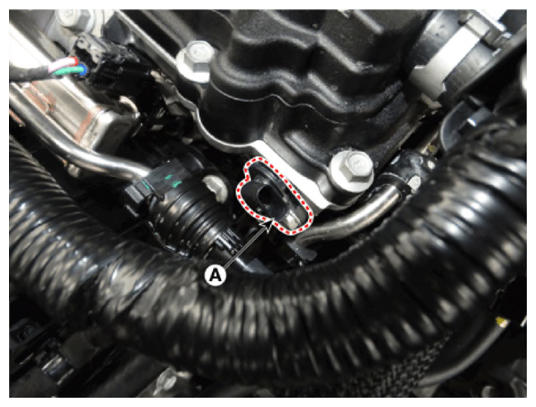

- Remove the sensor after loosening the mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
[Bank 1/Exhaust]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

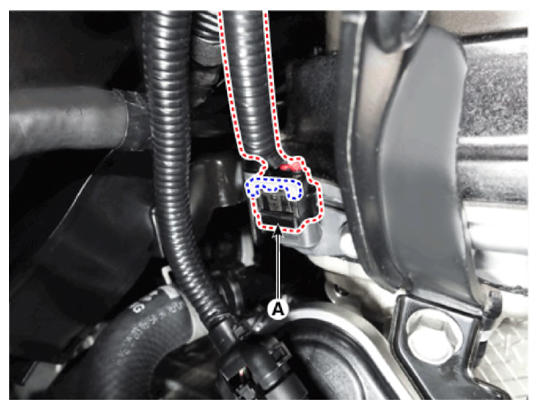

- Disconnect the camshaft position sensor connector (A).

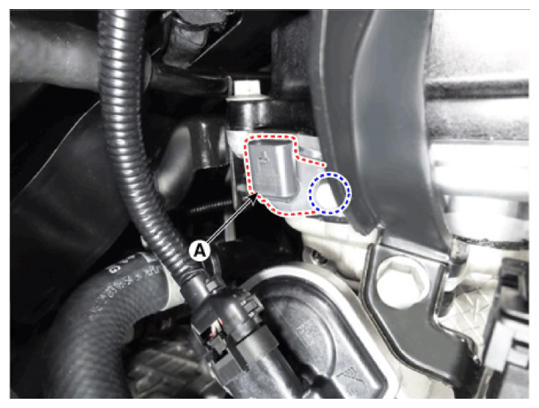

- Remove the sensor after loosening the mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
