Bank 1/Exhaust

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the engine hanger & camshaft position sensor protector after loosening the mounting bolt (B).
  4. Remove the mounting bolt (C), and then remove the sensor.
    G13039447Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

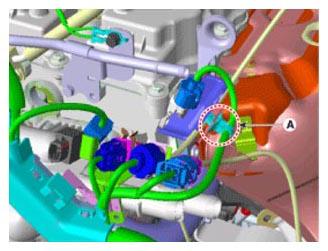

    • When installing the sensor connector be sure to keep the wiring clip position (A).
      G13039448Courtesy of HYUNDAI MOTOR AMERICA
