Bank 1/Exhaust

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

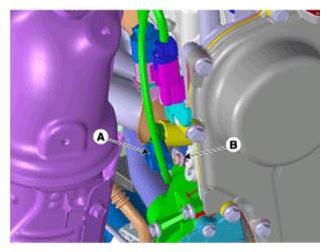

  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the mounting bolt (B), and then remove the valve from the engine.
    G13039497Courtesy of HYUNDAI MOTOR AMERICA
