Repair Procedures: Removal
- Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learning with the GDS tool.
(Refer to 4WD Control System - "REPAIR PROCEDURES ")
- Turn OFF ignition switch and the disconnect the negative (-) battery cable.
- Remove the luggage side trim.[Left side]
(Refer to Body - "INTERIOR TRIM ")

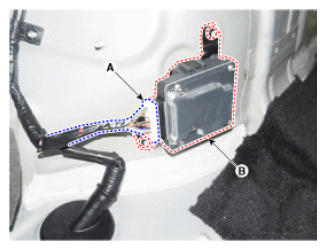

- Disconnect the 4WD ECU connector (A).
- Loosen the nuts and then removing the 4WD ECU (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
