Clock Spring

  1. If any improper parts are found during inspection, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

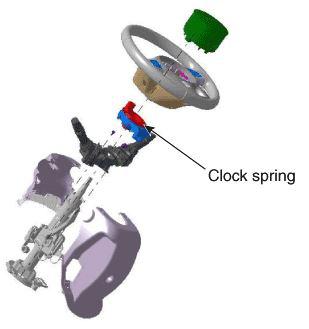

    G14426846Courtesy of HYUNDAI MOTOR AMERICA

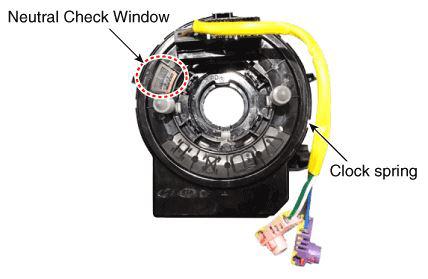

    G14426847Courtesy of HYUNDAI MOTOR AMERICA
