Smart Key Code Saving

  1. Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
    G14427229Courtesy of HYUNDAI MOTOR AMERICA

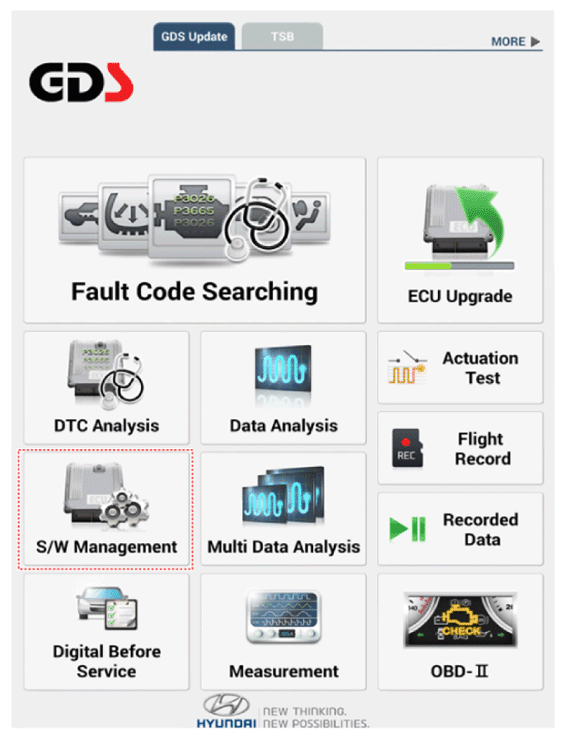

  2. Select the 'S/W Management' and 'Car model'.
    G14427230Courtesy of HYUNDAI MOTOR AMERICA

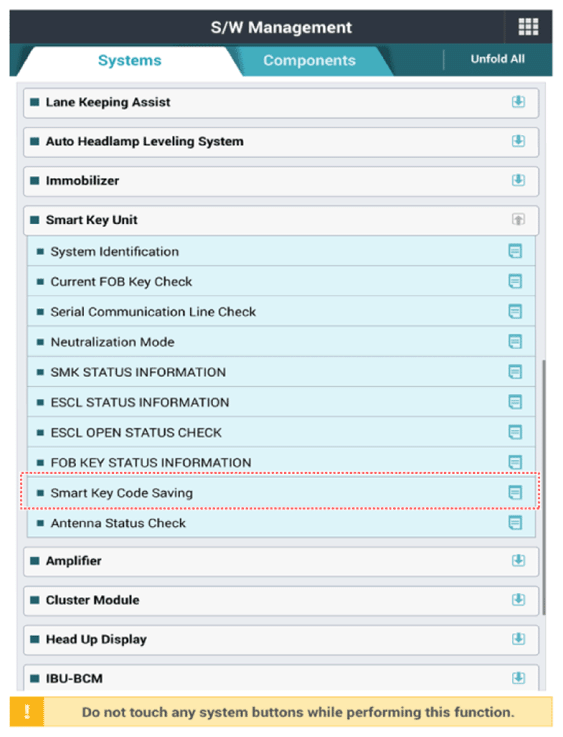

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G14427231Courtesy of HYUNDAI MOTOR AMERICA

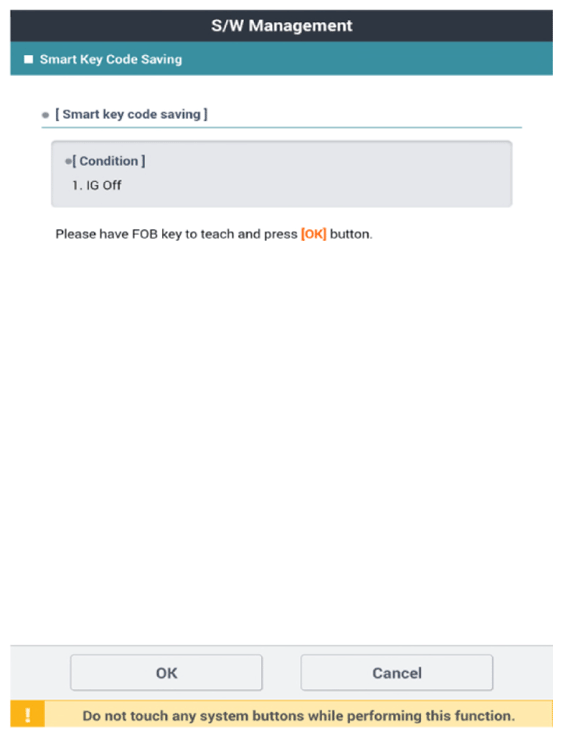

  4. Follow the instructions on the screen.
    G14427232Courtesy of HYUNDAI MOTOR AMERICA
