Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower cover.

    (Refer to Body - "Crash Pad Lower Panel ")

  3. Disconnect the ESP OFF switch connector (A).
    G13192848Courtesy of HYUNDAI MOTOR AMERICA

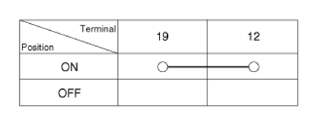

  4. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
    G13192849Courtesy of HYUNDAI MOTOR AMERICA
