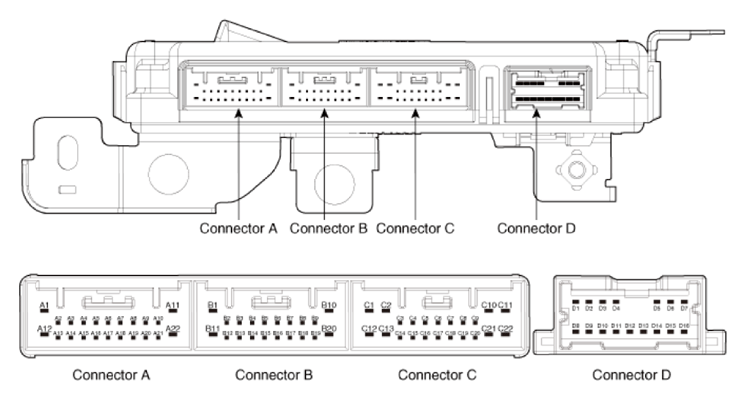

| 1 |
Batt (+) |
Front wiper switch |
P CAN (low) |
- |
| 2 |
IGN 1 |
Rear wiper switch |
P CAN (high) |
PAS Switch indicator |
| 3 |
IGN 2 |
Front wiper int vol switch |
- |
Heated steering indicator |
| 4 |
- |
Fog lamp switch |
Front wiper low relay |
- |
| 5 |
Front wiper switch (Low) |
Auto light power |
- |
- |
| 6 |
Rear wiper switch |
NTS sensor |
- |
- |
| 7 |
- |
- |
Front wiper high relay |
- |
| 8 |
Wiper parking switch |
B CAN (low) |
FPAS power |
Rear seat belt indicator (RH) |
| 9 |
- |
B CAN (high) |
FPAS power |
Rear seat belt indicator (Center) |
| 10 |
- |
Passenger seat belt |
PAS power |
Rear seat belt indicator (LH) |
| 11 |
- |
- |
Heated steering power |
- |
| 12 |
ACC |
- |
GND |
PDW (LIN) |
| 13 |
Front washer switch |
- |
Rear wiper relay |
Rain sensor (LIN) |
| 14 |
Brake switch |
Light switch |
Rear in folding relay |
Wiper relay (Low) |
| 15 |
- (Charge door switch) |
Head lamp switch |
- |
- |
| 16 |
Steering heater switch |
Auto light power |
- |
Room lamp |
| 17 |
Sunroof open switch |
Crash signal |
- |
- |
| 18 |
Sunroof open switch |
- |
NTS GND |
|
| 19 |
- |
Auto light ground |
Multifunction switch GND |
|
| 20 |
Rear defog switch |
Safety power window Enable (high) |
Multifunction switch GIN |
|
| 21 |
- |
|
- |
|
| 22 |
GND |
|
IGN 2 Heated steering power |
|
