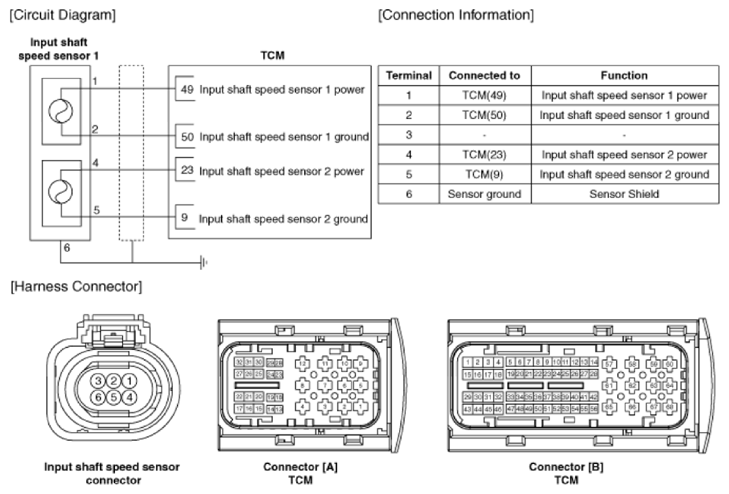

Home >> Hyundai >> 2020 >> Ioniq Plug-In Hybrid SE >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System (PHEV) >> Input Shaft Speed Sensor 2 >> Schematic Diagrams >> Circuit Diagram
