Repair Procedures: Installation

  1. To install, reverse the removal procedure.
    NOTE:
    • Perform the work procedures for abrasion compensation reset before installing the new clutch actuator assembly.

      (Refer to Clutch Actuator Assembly - "ADJUSTMENT ")

    • Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.
      G13563318Courtesy of HYUNDAI MOTOR AMERICA

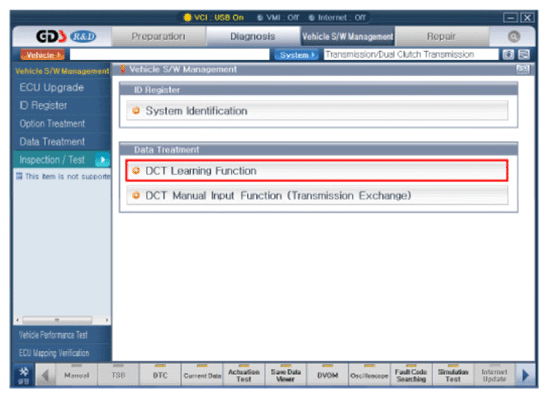

    • Perform the clutch touch point learning procedure using the GDS after replacing the clutch actuator assembly.
      G13563319Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Even if you removed and reinstalled the clutch actuator, be sure to perform the touch point learning.
    • If you have replaced the dual clutch assembly or clutch actuator, be sure to perform the touch point learning.
