Home >> Hyundai >> 2020 >> Elantra Value Edition >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> IVT Control System - 2.0L >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

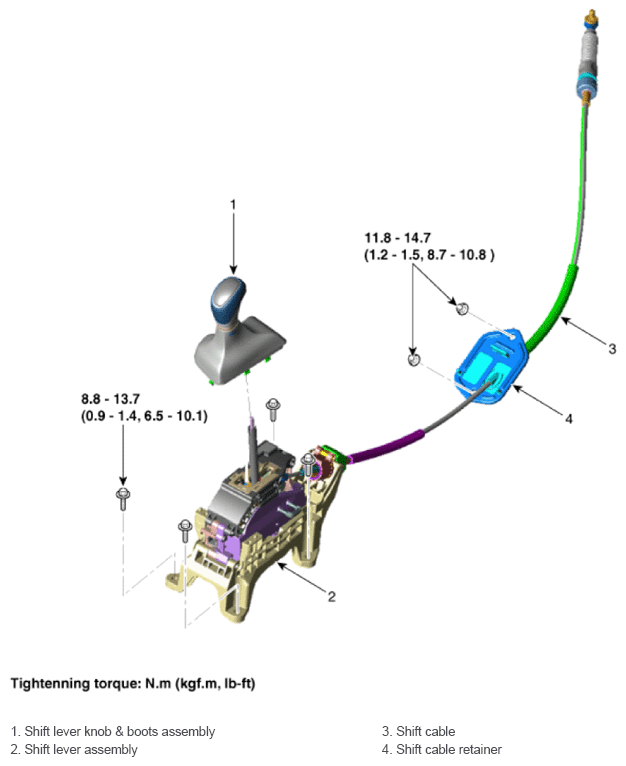

Fig 1: Shift Lever Components Location With Torque Specifications

G14084635

Courtesy of HYUNDAI MOTOR AMERICA
