Component Location

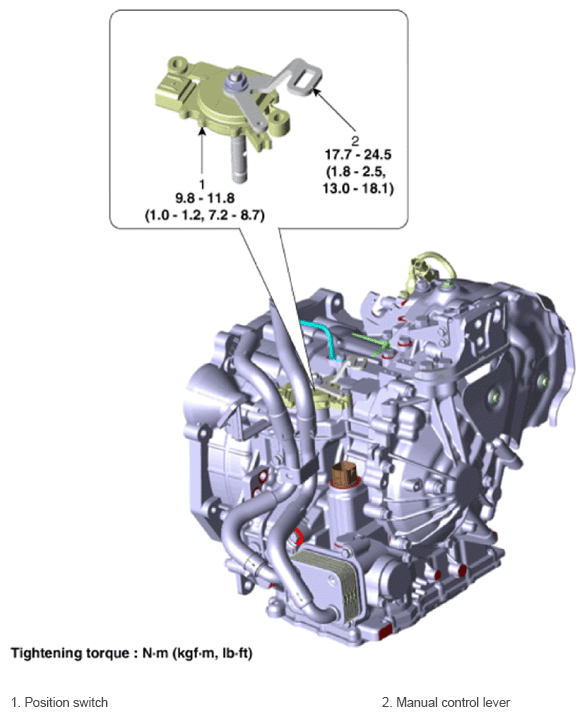

Fig 1: Position Switch Components Location With Torque Specifications
G14084621Courtesy of HYUNDAI MOTOR AMERICA
