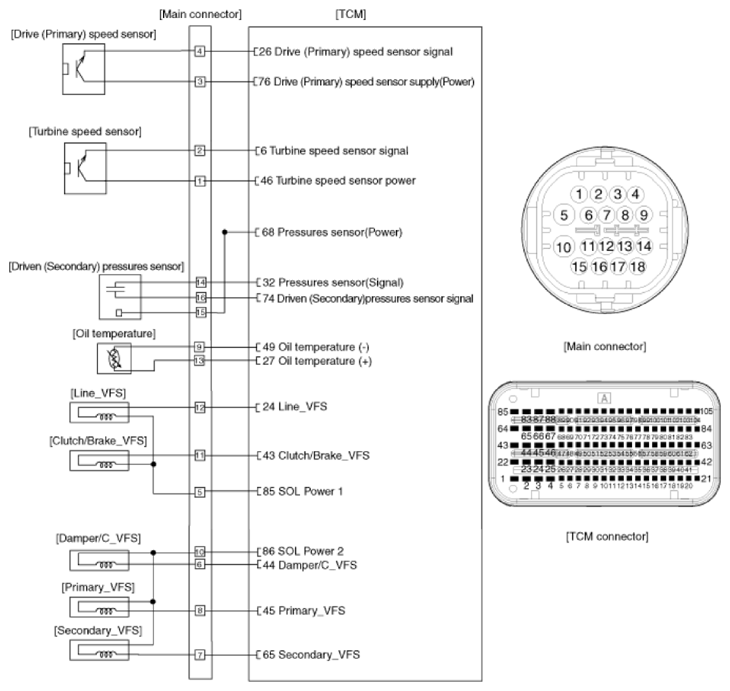

Home >> Hyundai >> 2020 >> Elantra Value Edition >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> IVT Control System - 2.0L >> E-Module >> Schematic Diagrams >> Circuit Diagram
