Repair Procedures: Removal

CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

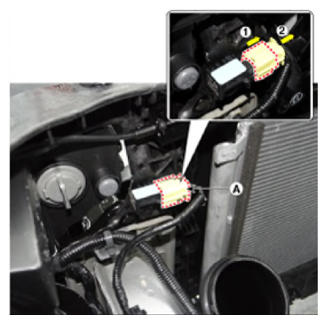

  2. Disconnect the front impact sensor connector (A).
    G14082280Courtesy of HYUNDAI MOTOR AMERICA

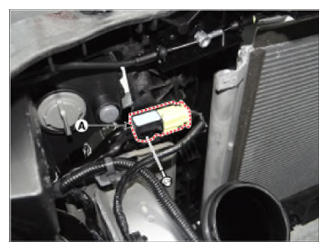

  3. Remove the front impact sensor (A) after loosening the mounting bolt.
    G14082281Courtesy of HYUNDAI MOTOR AMERICA
