Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

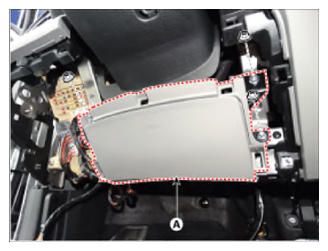

  3. Remove the knee airbag module (A) after loosening the mounting nuts.
    G14082330Courtesy of HYUNDAI MOTOR AMERICA

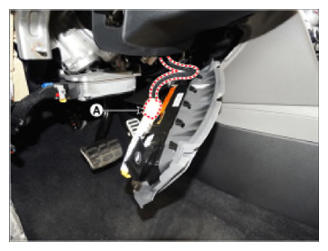

  4. Disconnect the knee airbag module connector (A).
    G14082331Courtesy of HYUNDAI MOTOR AMERICA
