Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module.

    [Without Paddle Shift]

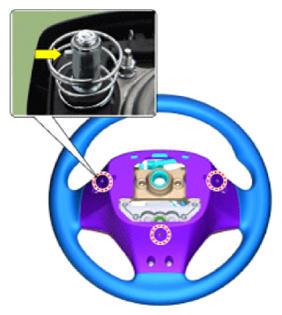

    • Putting in a flat tool (05 mm) into the guide hole and then press the spring.
      G14082302Courtesy of HYUNDAI MOTOR AMERICA

    [With Paddle Shift]

    • Putting in a flat tool (05 mm) into the guide hole (A) and then rotate it.
      G14082303Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • After inserting the tool, press the DAB fixed pin in the direction of the arrow as in illustration below.
      G14082304Courtesy of HYUNDAI MOTOR AMERICA

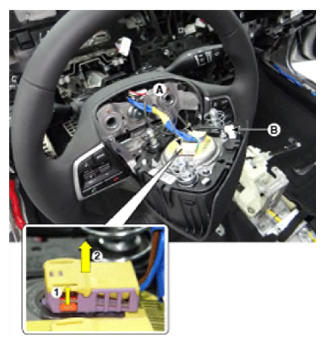

  3. Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
    G14082305Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  4. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

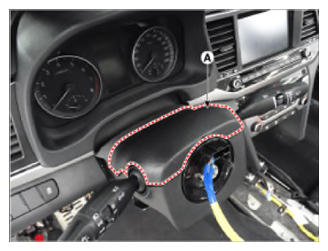

  5. Using a screwdriver or remover, separate the steering column shroud upper panel (A) from the steering column shroud lower panel.
    G14082306Courtesy of HYUNDAI MOTOR AMERICA

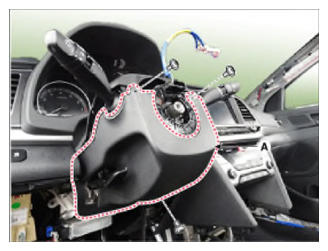

  6. Remove the steering column shroud lower panel (A) after loosening the screws.
    G14082307Courtesy of HYUNDAI MOTOR AMERICA

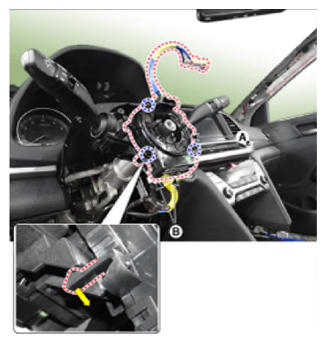

  7. Remove the clock spring (A) after disconnecting the clock spring connectors (B).
    G14082308Courtesy of HYUNDAI MOTOR AMERICA
