Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

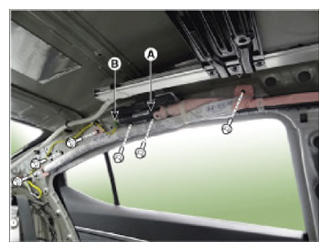

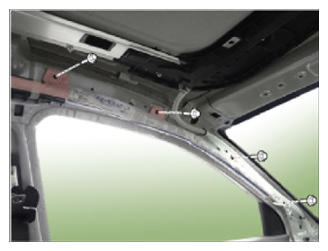

  3. Remove the curtain airbag (A) after disconnecting the curtain airbag harness connector (B) and loosening the mounting bolts.
    G14082327Courtesy of HYUNDAI MOTOR AMERICA
    G14082328Courtesy of HYUNDAI MOTOR AMERICA
