Interior 2 Antenna

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

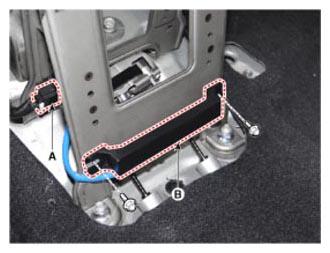

  3. Remove the interior 2 antenna (B) after loosening the mounting nuts (2EA) and disconnecting the connector (A).
    G12975038Courtesy of HYUNDAI MOTOR AMERICA
