Interior 1 Antenna
WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

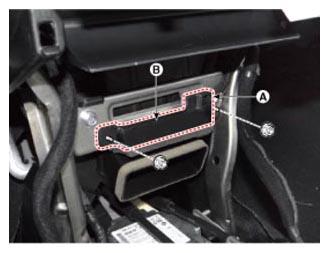

- Remove the interior 1 antenna (B) after loosening the mounting nuts and disconnect the connector (A).
