Door Outside Handle

WARNING: This page is about a different car, the 2019 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

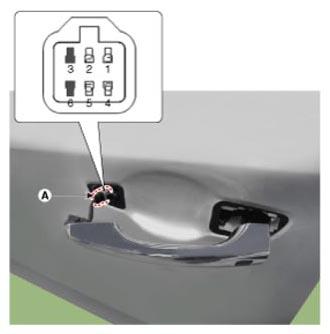

  1. Disconnect the front door outside handle connector (A).
    G12975043Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between terminals No 3 and No 6.
    G12975044Courtesy of HYUNDAI MOTOR AMERICA
    No Description
    1 Door antenna (+)
    2 Pocket lamp LED (+)
    3 Door lock/unlock button switch
    4 Door antenna (-)
    5 Pocket lamp LED (-)
    6 Door lock/unlock button switch ground
    G12975045Courtesy of HYUNDAI MOTOR AMERICA
