Repair Procedures: Removal

  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

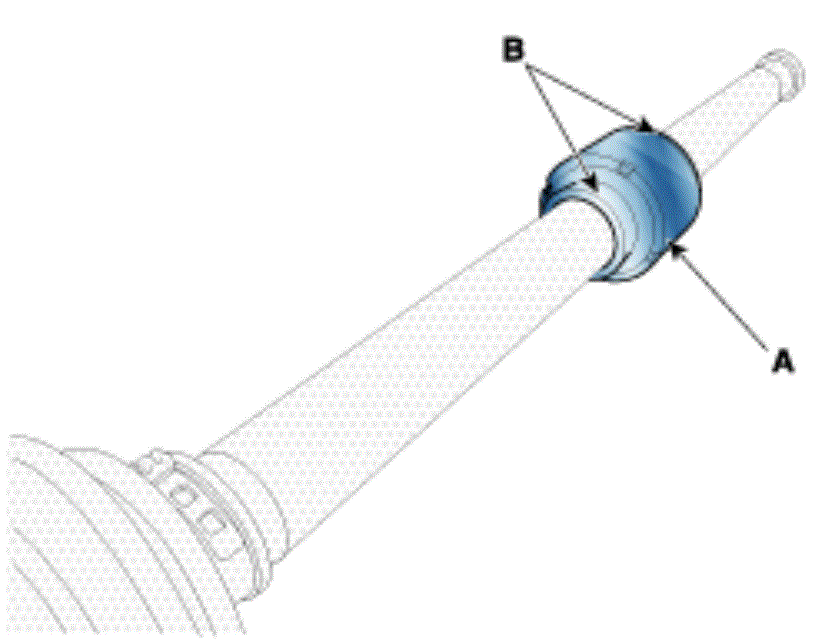

  3. Remove the remove the both side of band (B) of the dynamic damper (A).
    G14081897Courtesy of HYUNDAI MOTOR AMERICA

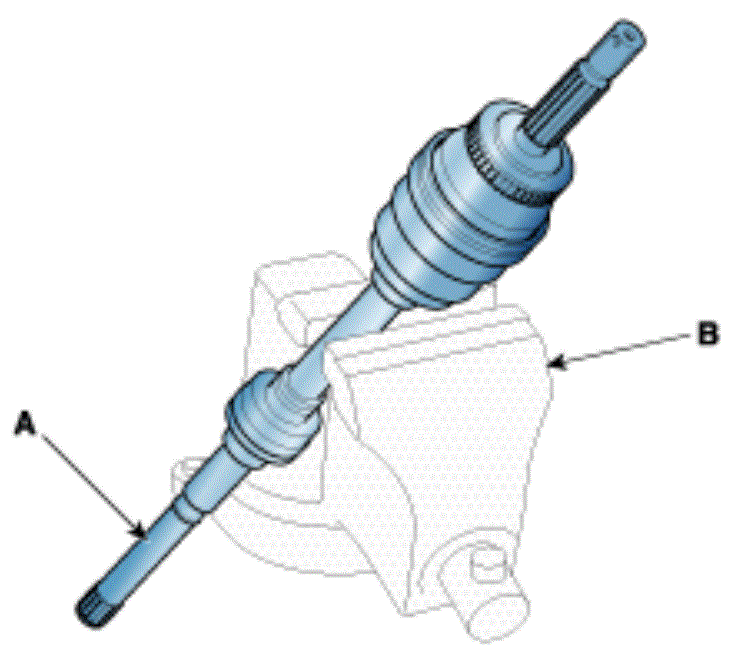

  4. Fix the driveshaft (A) with a vice (B) as illustrated.
    G14081898Courtesy of HYUNDAI MOTOR AMERICA
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

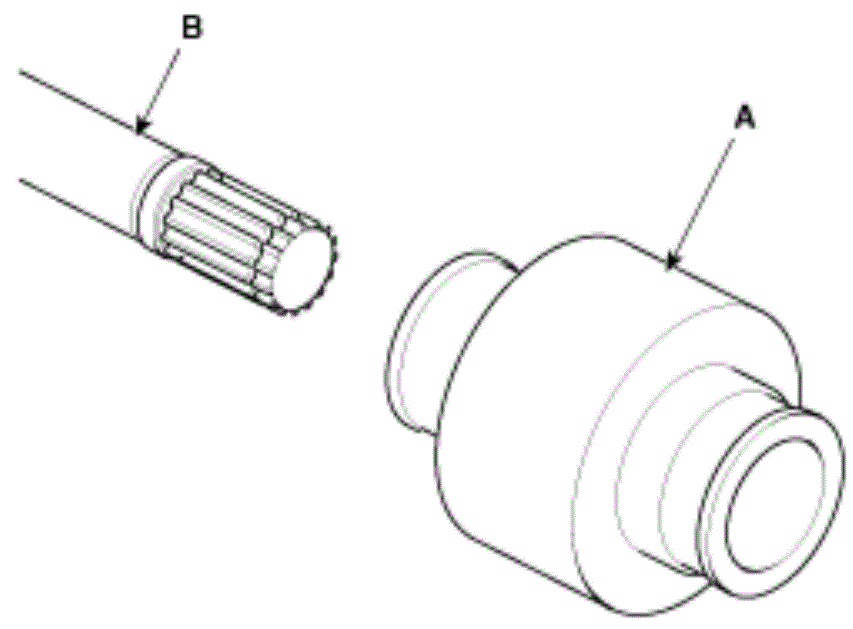

  6. Separate the dynamic damper (A) from the shaft (B) carefully.
    G14081899Courtesy of HYUNDAI MOTOR AMERICA
