Repair Procedures: Installation

  1. Install in the reverse order of removal.

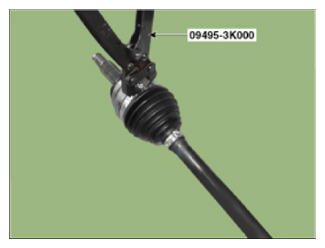

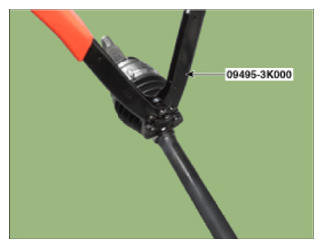

  2. Using the SST (09495-3K000), secure the BJ boot bands.
    G14081918Courtesy of HYUNDAI MOTOR AMERICA
    G14081919Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the boot band.
  3. Install the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  5. Check the front alignment.

    (Refer to Suspension System - "FRONT ALIGNMENT ")
