Home >> Hyundai >> 2020 >> Elantra Value Edition >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System (Abs) >> Front Wheel Speed Sensor >> Components And Components Location >> Components

Components And Components Location: Components

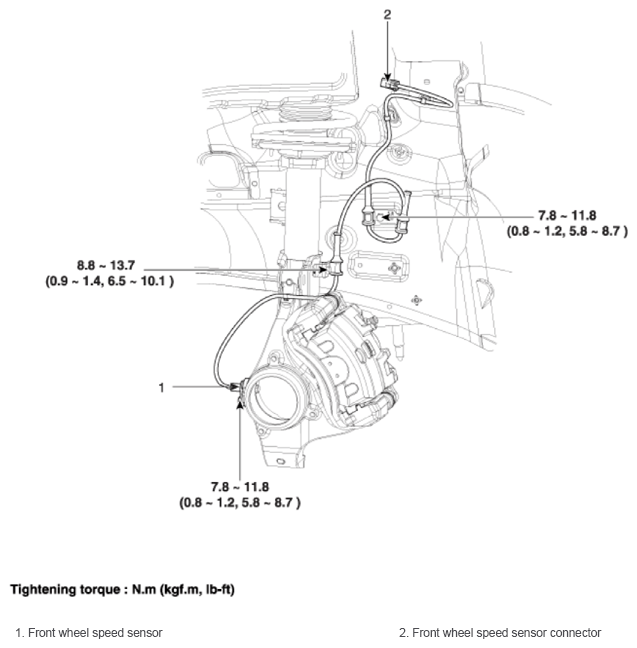

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specifications

G14082539

Courtesy of HYUNDAI MOTOR AMERICA
