Repair Procedures: Removal
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the roof side molding.
(Refer to Body Side Moldings - "ROOF SIDE MOLDING ")
- Remove the package tray trim.
(Refer to Interior Trim - "PACKAGE TRAY TRIM ")
- Remove the rear curtain, if necessary.
- Spread the WD-40 on the side of rear window glass.

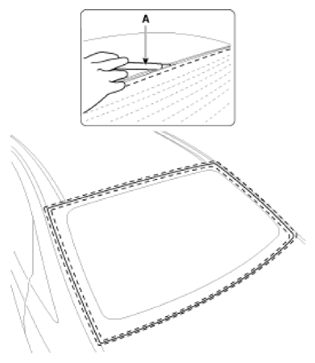

- Cut out the adhesive using the cutter (A).
Information
- Please use the cutter with a blade length between 8-12 inches.

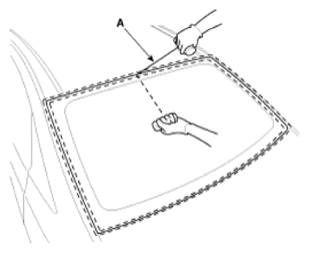

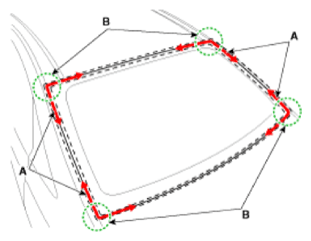

- Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
- If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

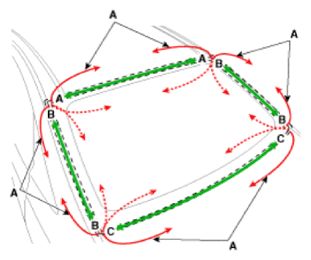

- Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
- Remove the rear window glass (A).NOTE:
- When removing and installing the rear window glass, an assistant is necessary.
