[Driver Power Window Switch]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

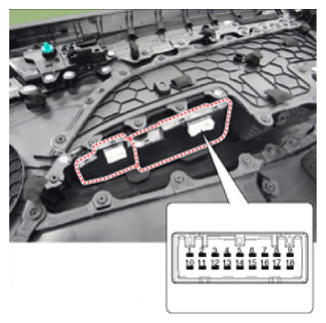

  3. Disconnect the power mirror switch connector from the door trim.
    G14083428Courtesy of HYUNDAI MOTOR AMERICA

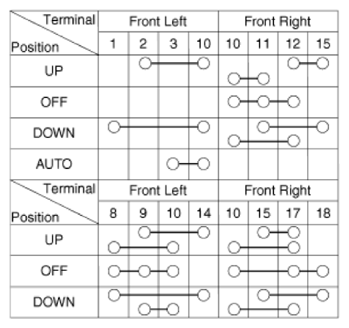

  4. Check for continuity between the terminals in each switch position as shown below.

    [Power Window Switch Inspection]

    G14083429Courtesy of HYUNDAI MOTOR AMERICA

    [Power Door Lock Switch Inspection]

    G14083430Courtesy of HYUNDAI MOTOR AMERICA

    [Power Window Lock Switch Inspection]

G14083431Courtesy of HYUNDAI MOTOR AMERICA
