[Assist Power Window Switch]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the assist door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the power mirror switch connector from the door trim.
  4. Check for continuity between the terminals in each switch position as shown below.

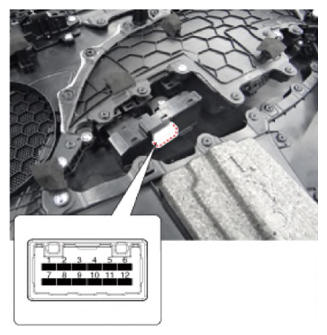

    G14083432Courtesy of HYUNDAI MOTOR AMERICA
    G14083433Courtesy of HYUNDAI MOTOR AMERICA
