Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

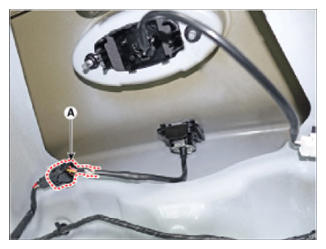

  3. Disconnect the rear view camera connector (A).
    G14083605Courtesy of HYUNDAI MOTOR AMERICA

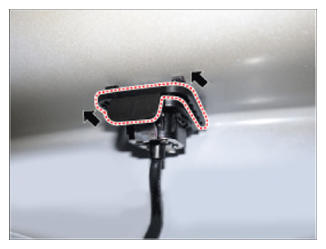

  4. Pull the camera holder in the direction of allow as the illustration below and remove it.
    G14083606Courtesy of HYUNDAI MOTOR AMERICA

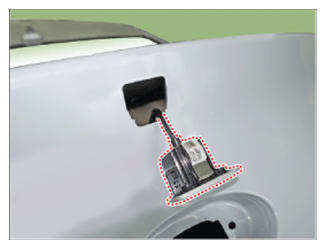

  5. Remove the rear view camera.
    G14083607Courtesy of HYUNDAI MOTOR AMERICA
