Component Location

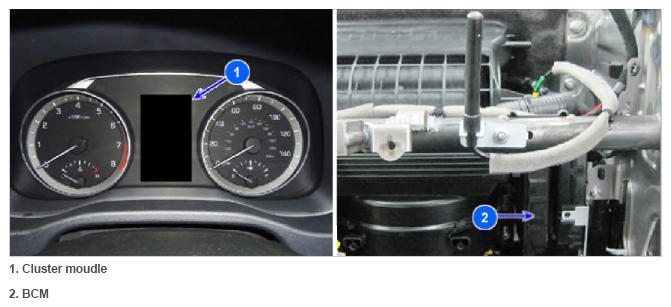

G14085104Courtesy of HYUNDAI MOTOR AMERICA
NOTE: BCM: Body Control Module
TPMS: Tire Pressure Monitoring System
→ TPMS module is installed inside BCM.
