Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

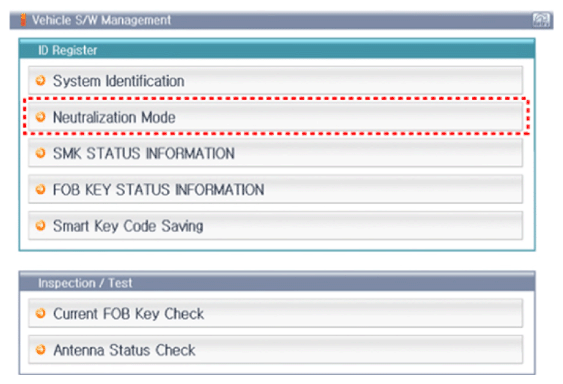

  2. After IG ON, select the "Neutralization mode".
G14083178Courtesy of HYUNDAI MOTOR AMERICA

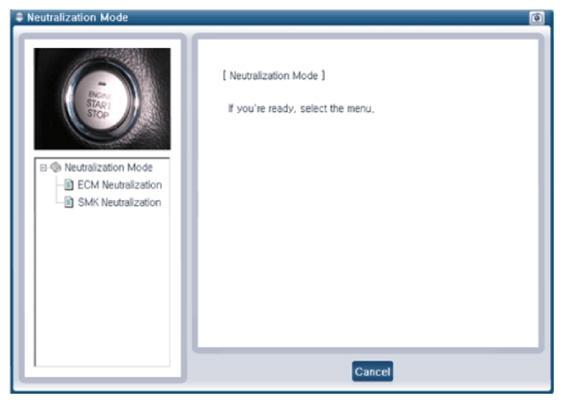

G14083179Courtesy of HYUNDAI MOTOR AMERICA

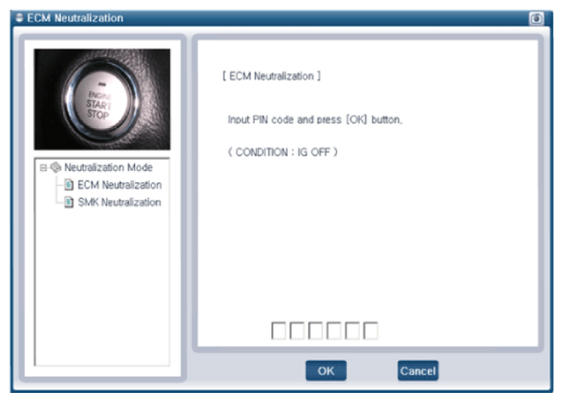

G14083180Courtesy of HYUNDAI MOTOR AMERICA

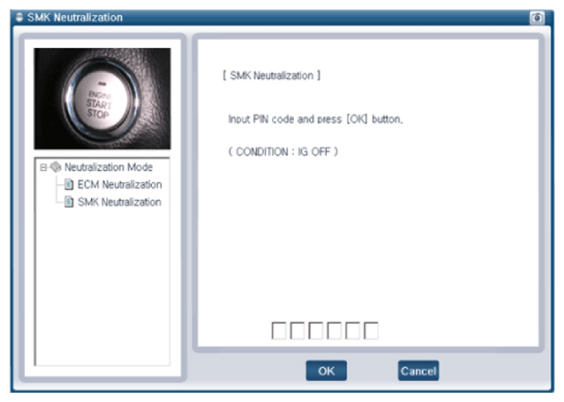

G14083181Courtesy of HYUNDAI MOTOR AMERICA
