Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

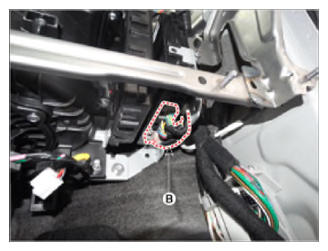

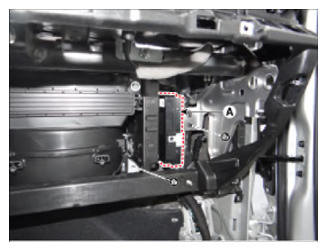

  3. Remove the smart key unit (A) after disconnecting the connectors (B) and loosening the bolt and nut.
G14083156Courtesy of HYUNDAI MOTOR AMERICA
G14083157Courtesy of HYUNDAI MOTOR AMERICA
